VIC Timing Chart

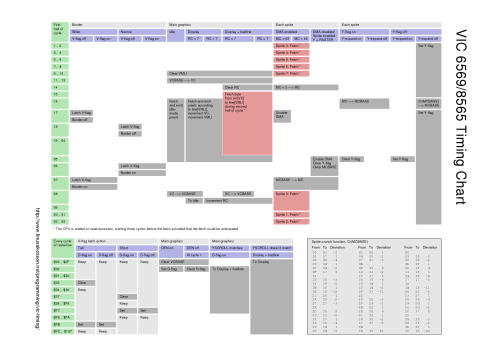

This is a comprehensive visualisation of the behaviour of the VIC chip. It is quite handy as a reference when coding C64 demo effects.

The information is presented in a very condensed form, and won't make sense without context. For that, I highly recommend the VIC article by Christian Bauer and the addendum by the VICE team.
