An AVR Programmer for the C64

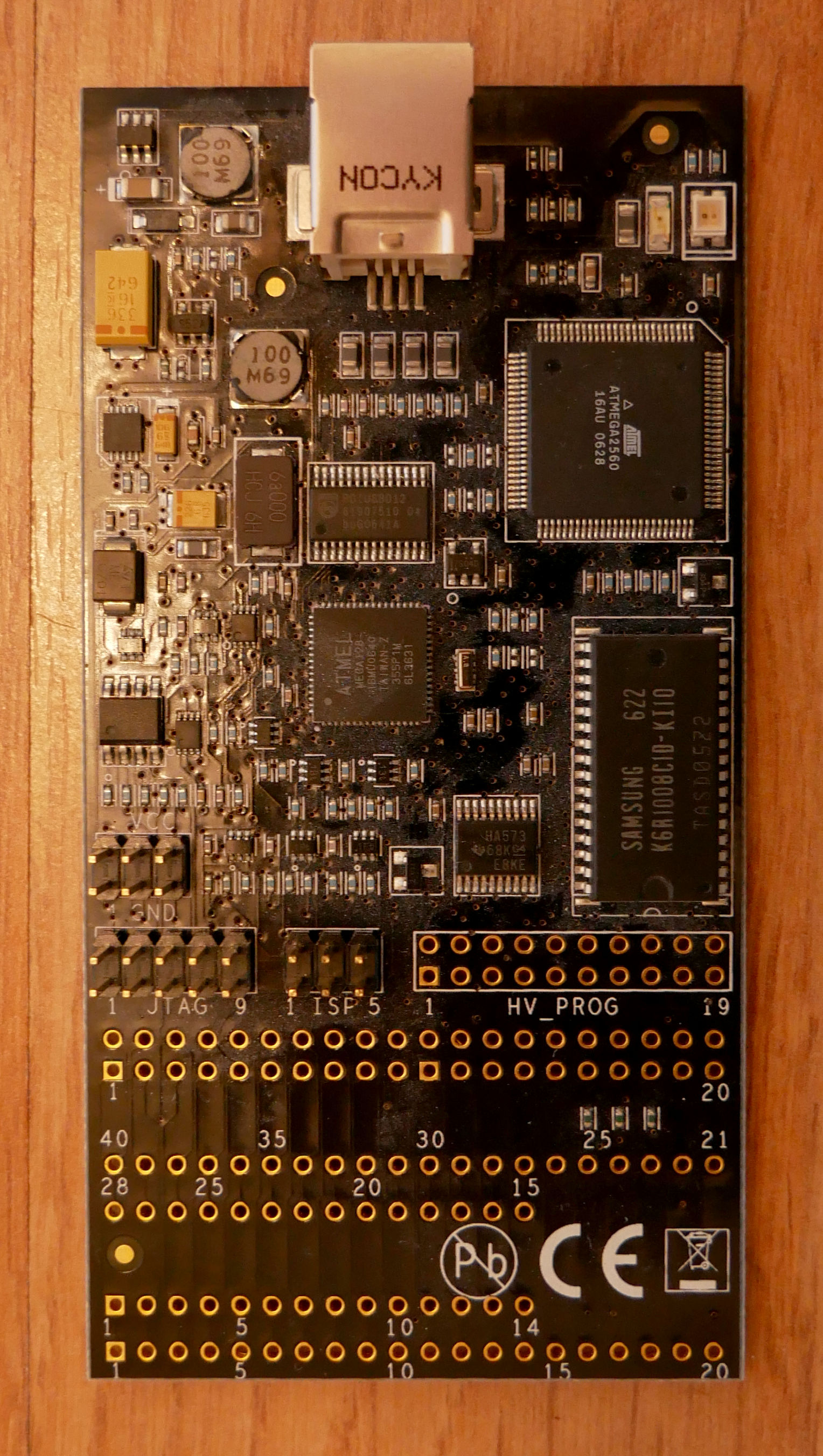

So there I was, tinkering away on a microcontroller project, when all of a sudden my AVR programmer stopped working.
The AVR family of microcontrollers are In-System Programmable (ISP): While they are held in reset, it's possible to upload new code to the on-chip flash memory over a three-wire serial protocol. However, as simple and well-documented as that protocol is, modern computers can't speak it because they lack general-purpose signals to connect to the outside world. Hence the need for a programmer (also known as a probe) that goes between the USB port of a computer and the microcontroller.
Such programmers are available off the shelf, and the simple models are quite cheap. But this malfunction happened on a Friday night and I was already knee-deep in my project. Ordering a new programmer would have meant putting everything on hold for a couple of days and ruining the whole weekend.
Normally, when you want to talk to some hardware via a custom protocol, you might do it using code running on a microcontroller. Only in this case I had a chicken-and-egg problem, because how would I get that code into a microcontroller without a programmer?
A machine that can talk to the world
So I looked around the room. If there had been, say, a Raspberry Pi system on my desk, my problem would have been solved. That's because recent versions of the avrdude tool can run the AVR ISP protocol over the GPIO pins (General-Purpose Input/Output) of that machine. But all my Raspberries were tied up in other builds, tucked away inside enclosures and running ancient software.
Instead my eyes fell on the good old Commodore 64. It's a capable system, and an absolute joy to program. It has plenty of signals that can be used for general-purpose I/O, exposed over a wide range of connectors. And I have a cartridge (a 1541 Ultimate) that lets me load software from a USB thumb drive, so it's easy to transfer data into the machine.

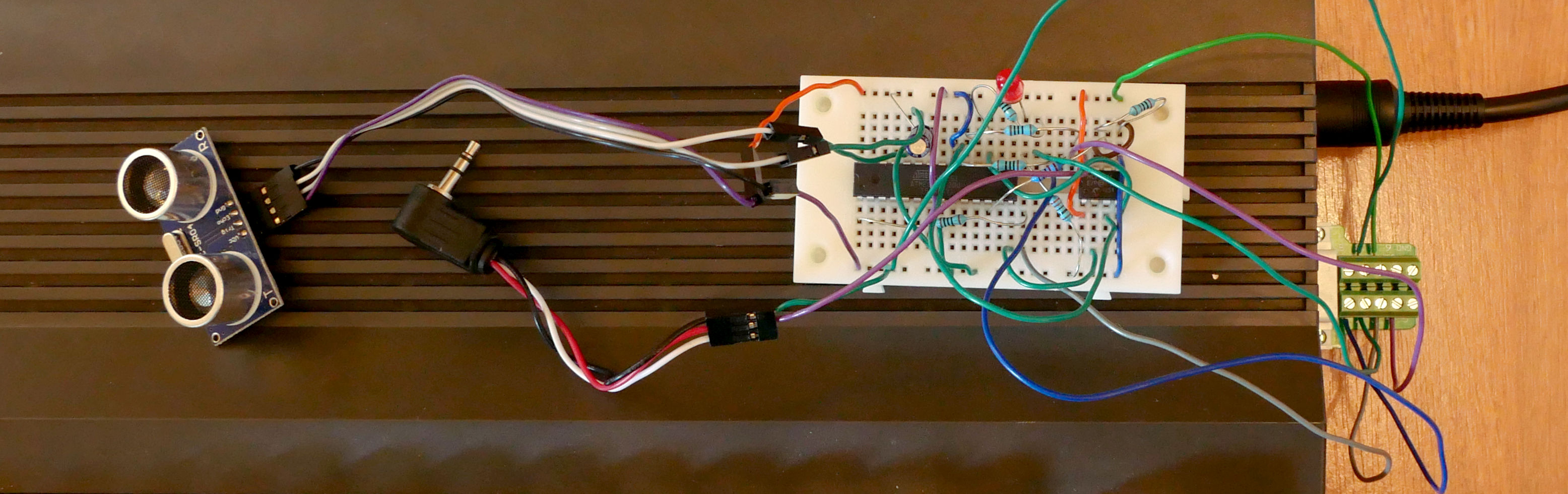

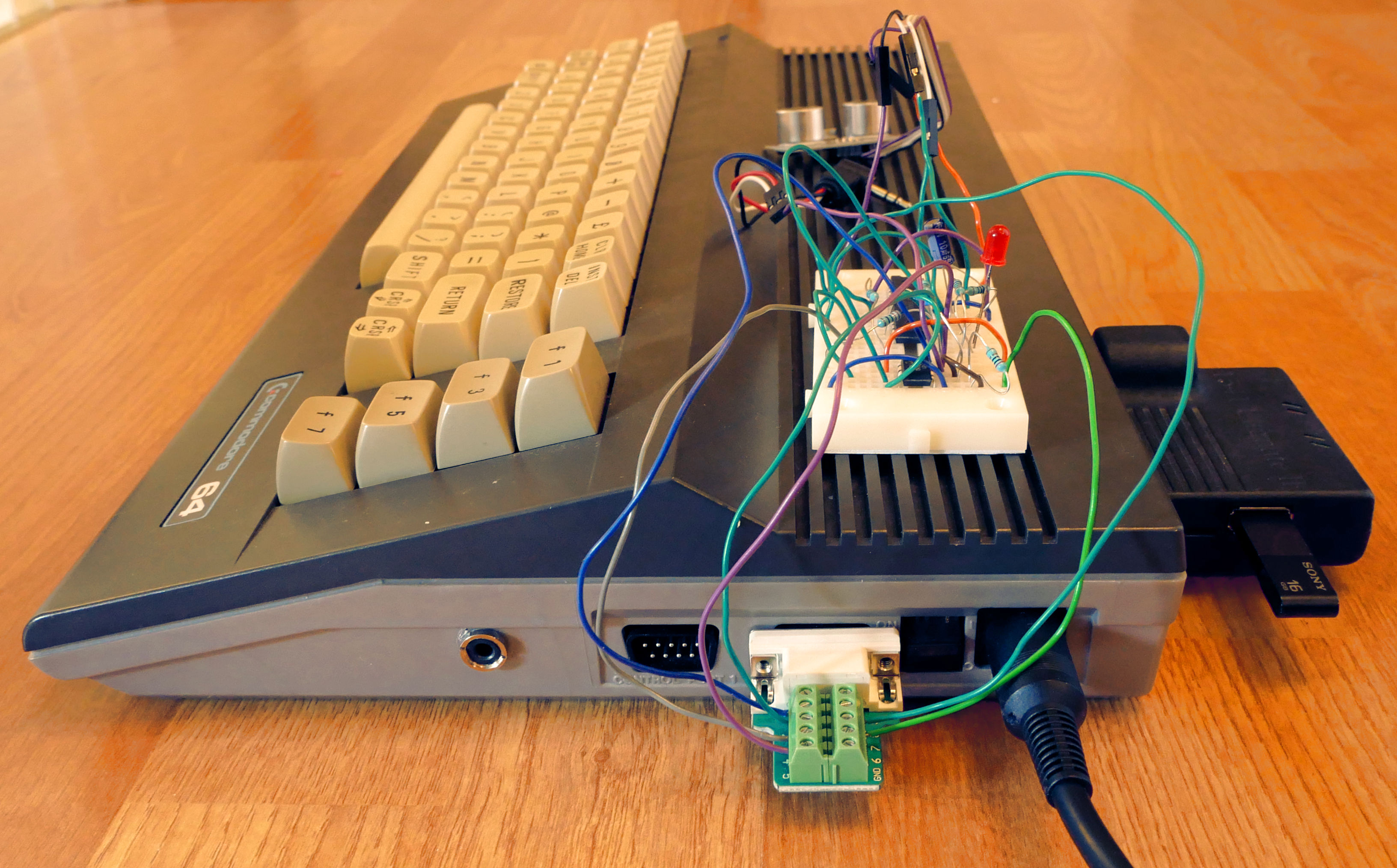

I also knew I had a 9-pin D-Sub connector with a terminal block somewhere, so I dug it out and plugged it into Joystick Port 2. Then I hooked it up to my project:
Reality is messy, but the ISP connection itself is straightforward:
![](schematic.png)
The resistors protect the C64 in case the AVR puts out strong signals while running—as mine does in this project, incidentally.
To keep cost and complexity down, the Commodore 64 was designed with the joystick ports and the keyboard matrix sharing signals. During normal operation, the C64 scans the keyboard sixty times per second, and during this scanning the lines of Port 2 are pulled to ground one at a time. As a side-effect this will periodically reset the AVR chip, so my software (on the C64) disables that interrupt.
A minimal implementation
My program just goes through the motions of the ISP protocol as documented in the AVR datasheets. 253 lines of assembly code produce a 381-byte executable—or rather, part of an executable. You then concatenate this program with the binary firmware image you want to flash into the AVR chip. Thus, on Linux, if you have the firmware in flash.hex in IntelHex format:
avr-objcopy -I ihex flash.hex -O binary flash.bin cat lft-avrprg64-1.0.prg flash.bin >combined.prg
And then you launch combined.prg on the C64. The program will change the border colour to indicate status:
Purple | Chip has responded. Flashing. |
Yellow | Verifying. |
Red | Verification failed. |
Green | Success! |
Upon reaching the green state, the program puts the three communication lines in a high-impedance state and takes the Reset line high. This allows the newly flashed firmware to run until the C64 is rebooted, at which point the system interrupt handler kicks in to reset the AVR again.
Download
- lft-avrprg64-1.0.prg (C64 executable, 381 bytes)
- lft-avrprg64-1.0.s (Source code, 2.5 kB)
Final remarks
The current version of the software only programs the flash area, but one could easily add support for updating the EEPROM area and fuse bits.
I'm not sure if anybody besides myself will find a use for the program. But the moral of the story is: Don't let a broken tool ruin your weekend! Take a look around the room and hack something together.
