Chapter 8: Ticks, scenes, and progress

Timed code

As we've seen earlier (Stopping and ticking), the standard library measures time in ticks. One tick corresponds to one action. The library makes a multi-query to the predicate (on every tick) on every tick. By default, this predicate contains a rule that in turn makes a multi-query to (on every tick in $), with the current room as parameter.

To add flavour text to a location, you can combine this mechanism with a select statement:

For fine-grained control, you can use a global variable to implement timed events:

To model a scene that plays out in the background for several moves, use a global flag and a tick handler:

Cutscenes

In their simplest form, cutscenes are just large blocks of text and perhaps a couple of modifications to the object tree. As such, they can appear anywhere in the program. If a cutscene is triggered by an action handler or a tick callback, it is customary to end the scene with (stop) or (tick) (stop), to inhibit any subsequent actions mentioned in the player's input. For instance:

If the cutscene can be triggered in multiple ways, put it in a separate predicate and query that from as many places in the code as you wish.

To prevent a cutscene from occurring twice, use a global flag:

The intro

When a story begins, the standard library queries the (intro) predicate, which story authors are encouraged to override.

The default implementation of (intro) just prints the story banner by querying (banner). The banner includes version information for the compiler and the standard library. By convention, stories should print the banner at some point during play. With Dialog, there is no formal requirement to print the banner at all, but it is helpful to the community and to your future self, and it looks professional.

The (banner) predicate calls out to (additional banner text), which is empty by default but can be overridden to include e.g. a subtitle, co-credit, or dedication.

Keeping score

The player's progress can be tracked by a global score variable. This feature needs to be enabled, by including the following rule definition somewhere in the story:

For scored games, the current score is displayed in the status bar.

The global variable is called (current score $).

Points can be added to the score with (increase score by $), and subtracted with (decrease score by $). These predicates fail if the score would end up outside the valid range of integers in Dialog, which is 0–16383 inclusive.

After every move, the standard library will mention if the score has gone up or down, and by how much, unless the player has disabled this feature using NOTIFY OFF.

If you know what the maximum score is, you can declare it:

When declared, the maximum score is mentioned by the default implementation of the SCORE command, in the status bar, as well as by the (game over $) predicate. It does not affect the operation of (increase score by $).

The status bar

It is straightforward to supply your own, custom status bar. Define a rule for the predicate (redraw status bar), and make use of the status area functionality built into the Dialog programming language.

The standard library defines (status headline), which can be used to print the location of the player character in the usual way. That would normally be the current room header, followed by something like “(on the chair)” if the player character is the child of a non-room object. But if the player character is in a dark location, control is instead passed to (darkness headline), which usually prints “In the dark”.

Game over

The library provides a predicate called (game over $). Its parameter is a closure containing a final message, which the library will print in bold text, enclosed by asterisks. Then it will:

• Invoke (game over status bar) which sets the status bar to “Game over”, unless you override it.
• Report the final score (if scoring is enabled), and the maximum score (if one has been declared).
• Enter an infinite loop where the player is asked if they wish to RESTART, RESTORE, UNDO the last move, or QUIT.

Here is an example of a (very small) cutscene that ends the game:

A fifth option can be added to the game-over menu: AMUSING. First, add the option to the menu with the following rule definition:

Then, implement a predicate called (amusing) that prints a list of amusing things the player might want to try:

Custom options can be added to the menu by defining rules for (game over option). A multi-query will be made to this predicate, and the output is supposed to end with a comma. For instance:

And here is how to specify what happens when the user types the given word:

Choice mode

As a complement to the parser, the Dialog standard library offers a choice mode, where the player navigates a set of nodes (text passages) by choosing from explicit lists of options. Choice mode can be used for interactive cutscenes, conversations, mini-games, or even as the primary mode of interaction of a game. The author is free to switch between parser-based and choice-based interaction at any time, as behoves the story.

Nodes are represented by ordinary Dialog objects. In the simplest mode of operation, each node has a label and some display-text, and offers a set of links to other nodes:

To select choice mode—or remain in choice mode but force a transition to a different node—make a query to (activate node $) with the desired node object as parameter. To select parser mode, make a query to (activate parser). Be aware that both of these predicates invoke (stop), thereby effecting an immediate return to the main loop.

In the main loop, if choice mode is on, the library determines what nodes are reachable from the currently active node, and prints a numbered list of their labels. If the player types one of the numbers (or clicks one of the labels, if library links are enabled and the interpreter supports them) then the corresponding node is activated. Otherwise, the input is parsed in the usual way. By default, all in-world actions are disabled in choice mode; only commands (e.g. UNDO, SAVE) work. Here is an example session:

Exposed and unexposed nodes

When a node has been activated at least once, it is considered exposed, and the flag ($ is exposed) is set. This is handy for putting conditions on the links between nodes:

In the above example, the “Return back home” option will only show up after the player has visited both the poppies and the rosebush.

The access predicate ($ is unexposed) is the negation of ($ is exposed).

A node can have an initial label which is shown instead of the regular label while the node is unexposed:

The default implementation of (initial label $) simply passes control to (label $).

Conditional labels

The currently active node is indicated by the global variable (current node $). In parser mode, (current node $) is unset. You shouldn't update this variable directly—use (activate node $) and (activate parser)—but you may query it.

Labels can have conditions. In particular, they can depend on the current node:

Dead ends and sticky nodes

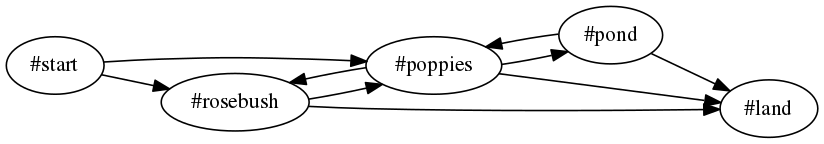

A dead end is a node that doesn't offer any further choices. When the current node is a dead end, control flows back to the most recent node by default. In addition, the dead-end node becomes unavailable. Unavailable nodes do not show up in option lists, even if they are declared using ($ offers $).

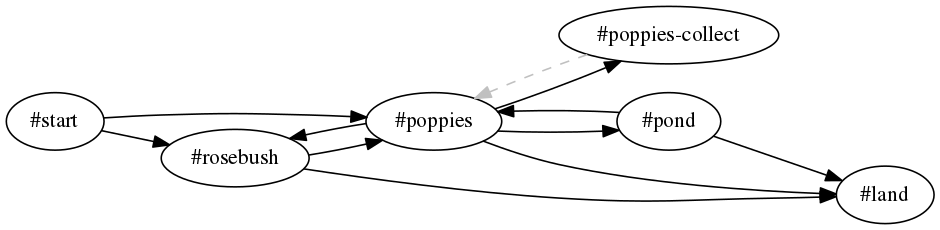

Sometimes you'll want a dead-end node that remains available in choice-listings even after it has been exposed. Just mark the node as sticky:

Flow and converging paths

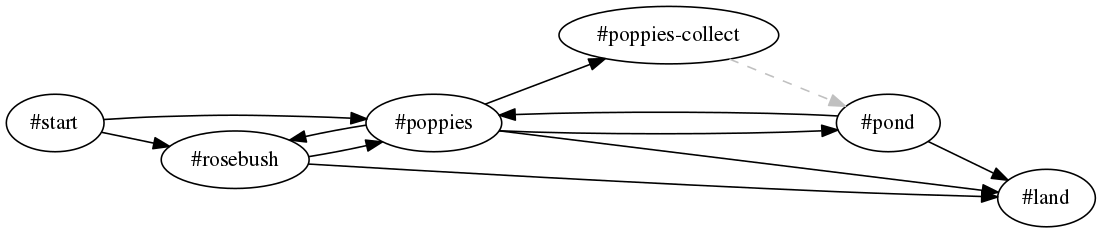

It is possible to specify a different target for a dead-end node using ($ flows to $):

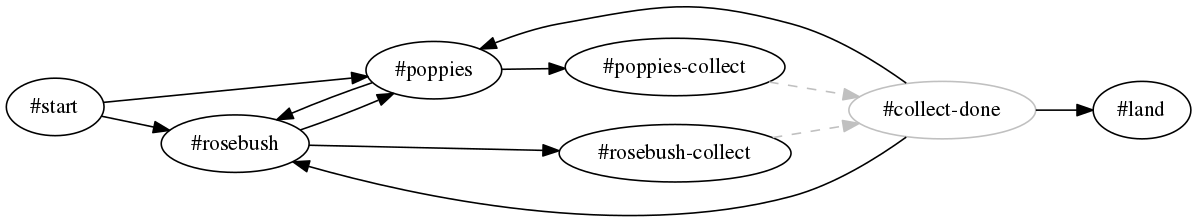

This mechanism can be used to implement converging paths, where a single node can be reached in several ways, with different display-text for every path. The common node itself can have a blank display-text, and only serve as an anonymous bag of subsequent choices:

Note: In this example, #poppies-collect and #rosebush-collect are declared sticky. This prevents the game from becoming unwinnable if the player revisits a plant after collecting both kinds of nectar.

The default behaviour of automatically returning to the previous node is actually implemented as a fallback rule for the ($ flows to $) predicate.

Only a single level of node history is recorded, so automatic backtracking only works once. If the previous node also offers no choices, then the library dumps the player back into parser mode. If this is undesirable, always provide explicit ($ flows to $) links for nodes that might turn into dead ends. That is, nodes that offer choices initially, but where all of those choices may eventually go away.

The hub pattern

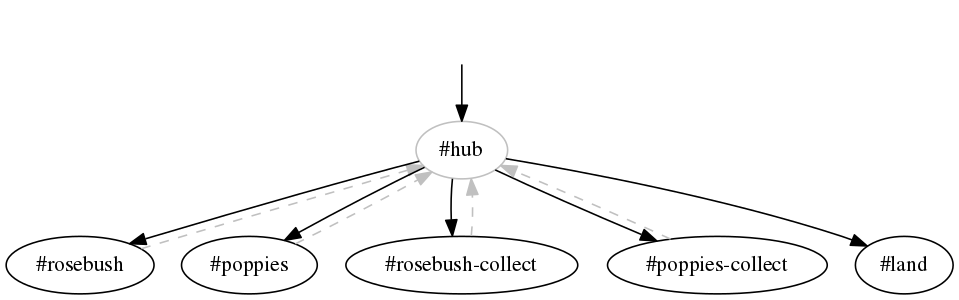

Another way to organize a choice-based sequence is to have a central hub node, and to selectively offer links based on which peripheral nodes have been exposed so far.

In the following example, the player can collect nectar once from each plant, and needs at least some nectar in order to proceed with the landing:

Choice/parser integration

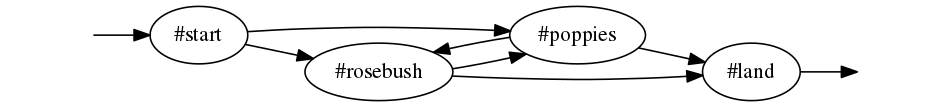

A terminating dead-end node has the side-effect of leaving choice mode. This is handy when integrating choice-based sequences into a larger game:

Terminating nodes are implicitly sticky.

Nothing prevents you from letting arbitrary game objects double as nodes in choice mode. For instance, in the above example we could have used #beehive as the starting node, instead of introducing a separate #start object. This is particularly handy when a game contains multiple choice-based sequences that are triggered in a similar way. For instance, conversations with non-player characters could be launched with a generic rule, such as:

When the player types a number during choice mode, a query is made to (choose $). The default behaviour of this predicate—feel free to override it!—is to print the label of the object followed by a paragraph break, and then make a query to (activate node $). This predicate, in turn, performs some internal housekeeping, and displays the node using a predicate called (display $):

So as a complement to the normal (disp $) rules, story authors can put header and footer material in (before disp $) and (after disp $), respectively.

After querying (display $), (activate node $) marks the node as exposed, and invokes (stop). But no query is made to (tick). Hence, by default, no in-game time passes in choice mode.

To change this, just add an (after disp $) rule with an explicit query to (tick):

Sometimes, it is more natural to advance time only at terminating nodes, i.e. just before the game transitions from choice mode to parser mode:

And here is a variant that also prints the current room description, sending a signal to the player that the game is now in parser mode:

Hybrid modes

The library also supports parser/choice hybrid modes, where certain actions are available in addition to the numbered choices. For instance, it could be useful to allow SHOW X TO Y from within a choice-based conversation.

By default, all actions are allowed in parser mode, while only commands are allowed in choice mode. Change this by adding rules to (allowed action $), e.g.:

As an arbitrary example, you could allow LOOK from a subset of the nodes:
